Reverse-engineering an IPTV set-top box - Part 3

You're reading the next part of IPTV Reverse-Engineering - Part 2.

This time, however, I was writing this post along with making various attempts to break into the device. The last part ended on having the "adapter PCB" designed and printed, ready for etching with the toner transfer method.

Testing the adapter PCB

I didn't take any photos of the etching and soldering process, but at least you'll get to see the finished product:

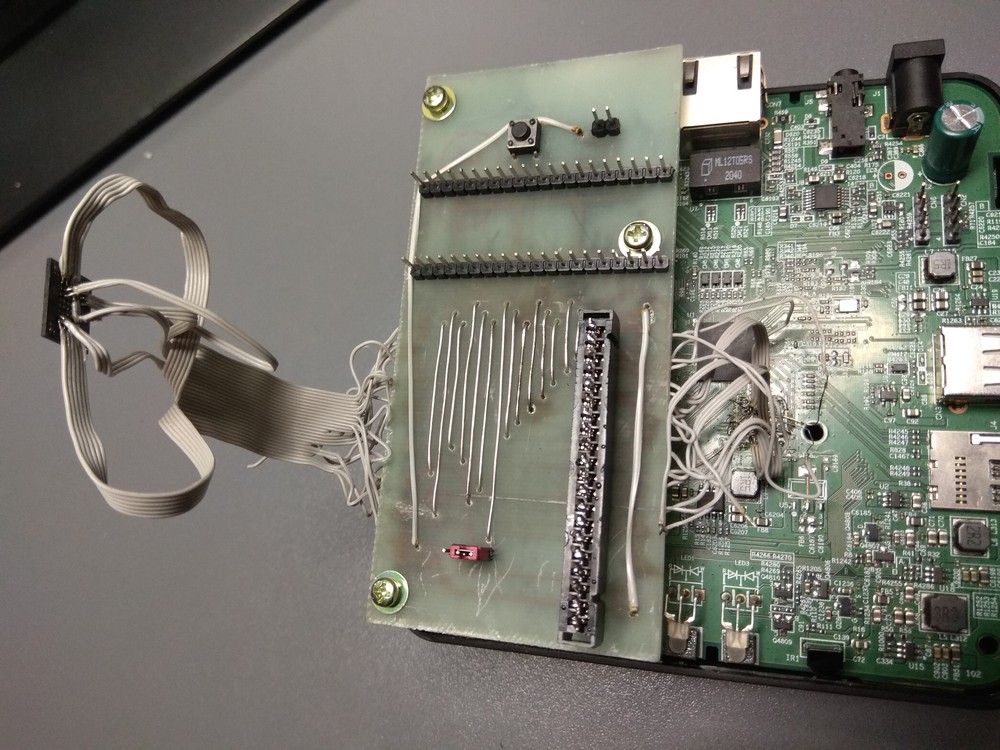

NAND adapter - PCB with soldered wires

The PCB was attached to the STB with 3 screws in its original mounting holes. The NAND chip was on the left side, soldered to the adapter. The right side shows wires going from the adapter to the STB's board, right where the NAND would normally reside. There was also a Raspberry Pi Pico mounted on top.

It wasn't pretty - in fact, it looked horrible. But I don't care, I only need it to work.

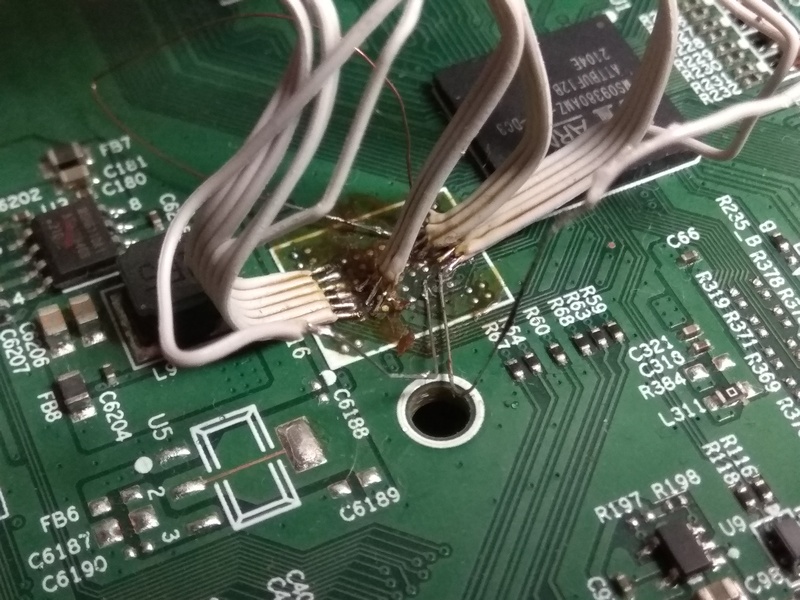

In the process of soldering the two boards together, I ripped off 3 of the BGA NAND's pads on the original PCB. As you'd expect, these were critical signal connections, not just some extra Vcc lines... Thankfully, I managed to scrape off a little bit of the tiny traces on the PCB and install some (even thinner) wires. Testing for continuity with my multimeter confirmed that the bodge wires were indeed soldered properly! (although still hanging by a thread)

I was eager to test it out, see if the device boots up. But first, I removed the black jumper connector - I needed to make sure the NAND<->Pico connection still worked fine. I connected the Pico to my computer and fired up the dumping software, that I used in 2023. Fortunately, it still read data just fine, which proved the cable connections were good.

That meant it was time for the moment of truth - booting up the STB from NAND, nearly a year after desoldering it from the PCB. I removed the Pi Pico, connected 3.3V power to the NAND, then 12V to the STB's power jack, and...

It worked. It booted up as if nothing ever happened. That meant I could read AND write to the flash chip and boot the STB to see what happens - a perfect hacking setup (or is it?).

Acquiring a good firmware dump

Knowing the device could still boot up, I had to prepare the NAND writing software. But first, since the dumps were not 100% reliable (a couple of bits were reading out incorrectly), I made like 20 dumps of the flash. Each of them was slightly different - I couldn't work out how to improve the reliability.

With a simple Python script, I was able to combine all the dumps to get a valid one (setting each "flipped" bit to the most frequently observed value). Even though I couldn't possibly catch all bit read errors, it shouldn't be a problem - after all, ECC in the MStar chip will correct most bad readouts - even if it's not due to interference, but an incorrect value actually being stored on the NAND.

From the NAND dumps I made, I could (roughly) determine the layout of the flash. Here is an updated partition layout from the one I initially created in 2023.

Testing the NAND programmer

First, I updated my Pi Pico NAND dumper program to support "block erase". To test if it works, I decided to erase the ubild partition (environment). Indeed, the pages were now erased and empty.

Surprisingly, it didn't brick the device. It could still boot up just fine - U-Boot simply recreated the environment and wrote it back to the NAND.

Okay, so now that I could erase blocks, how about writing data? Remember that the NAND uses ECC (Error Correction Code) - I wasn't able to "guess" the correct ECC code - will the device accept pages without ECC?

To verify that, I wanted to erase both of the splash partitions, then write them back, but without ECC. A simple interactive Python script allowed me to run different NAND operations, like reading, erasing, writing and verifying.

Of course, I erased cis1 by accident. I was able to restore it back, but even without CIS1 the device booted up just fine - after all, the backup cis2 partition was still there.

After erasing both splash partitions, the result was... nothing interesting - it booted up fine, just without the splash screen; the display remained blank until the GUI started up.

How about writing the splash partition back without ECC?

Enter partition name: splash1
Enter input file name [076E0000_splash1.bin]:
Write with OOB? [Y/n] n
Are you sure? [y/N] y
[...]
Verifying page 62974 (07AFF000/07B00000) - 4.1 MiB/4.1 MiB, speed: 77 KiB/s, ETL: 0.08 sec
Verifying page 62975 (07AFF800/07B00000) - 4.1 MiB/4.1 MiB, speed: 77 KiB/s, ETL: 0.03 sec
Verification: 0 byte(s) differ

splash1 partition's first page after writing:

00000000: 2B DA 67 00 04 00 01 E4  96 11 30 11 00 00 00 04  +.g.......0.....
00000010: AA 38 70 95 61 64 62 32  36 37 30 77 66 20 5B 30  .8p.adb2670wf [0
00000020: 30 30 30 30 31 36 39 2E  30 30 30 30 30 30 30 31  0000169.00000001
00000030: 5D 20 73 70 6C 61 73 68  20 69 6D 61 67 65 00 00  ] splash image..
00000040: 00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  ................
00000050: 00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  ................
00000060: 00 00 00 00 00 00 00 01  19 20 00 FF FF FF FF FF  ......... ......
00000070: FF FF FF FF FF FF FF FF  FF FF FF FF FF FF FF FF  ................
[...]
00000100: 00 01 18 20 00 01 18 1C  00 00 01 00 00 00 00 00  ... ............
00000110: AD BA DB 20 00 00 00 10  00 00 00 00 00 00 00 00  ... ............
00000120: 00 00 00 00 00 00 00 00  49 4C 44 53 00 01 17 F0  ........ILDS....
00000130: 00 00 00 01 00 00 00 02  00 00 00 00 00 00 01 E6  ................
00000140: 73 65 74 65 6E 76 20 62  6C 5F 64 66 62 5F 66 72  setenv bl_dfb_fr
00000150: 61 6D 65 62 75 66 66 65  72 5F 61 64 64 72 20 30  amebuffer_addr 0
00000160: 78 31 39 32 33 36 30 30  30 0A 73 65 74 65 6E 76  x19236000.setenv
[...]
000002D0: 78 30 30 38 46 37 30 30  30 0A 73 65 74 65 6E 76  x008F7000.setenv
000002E0: 20 62 6F 6F 74 6C 6F 67  6F 5F 67 6F 70 69 64 78   bootlogo_gopidx
000002F0: 20 33 0A 73 65 74 65 6E  76 20 72 65 73 6F 6C 75   3.setenv resolu
00000300: 74 69 6F 6E 20 38 0A 73  65 74 65 6E 76 20 63 6F  tion 8.setenv co
00000310: 6C 6F 72 66 6F 72 6D 61  74 20 32 0A 68 64 6D 69  lorformat 2.hdmi
00000320: 20 69 6E 69 74 0A 00 00  00 01 00 01 15 EA FF D8   init...........
00000330: FF E0 00 10 4A 46 49 46  00 01 02 01 00 6C 00 6C  ....JFIF.....l.l
00000340: 00 00 FF ED 00 2C 50 68  6F 74 6F 73 68 6F 70 20  .....,Photoshop
00000350: 33 2E 30 00 38 42 49 4D  03 ED 00 00 00 00 00 10  3.0.8BIM........
00000360: 00 6C 00 00 00 01 00 01  00 6C 00 00 00 01 00 01  .l.......l......
00000370: FF E1 63 E4 68 74 74 70  3A 2F 2F 6E 73 2E 61 64  ..c.http://ns.ad
00000380: 6F 62 65 2E 63 6F 6D 2F  78 61 70 2F 31 2E 30 2F  obe.com/xap/1.0/
00000390: 00 3C 3F 78 70 61 63 6B  65 74 20 62 65 67 69 6E  .<?xpacket begin
[...]
000007D0: 20 3C 2F 64 63 3A 74 69  74 6C 65 3E 0A 20 20 20   </dc:title>.
000007E0: 20 20 20 20 20 20 3C 78  6D 70 3A 43 72 65 61 74        <xmp:Creat
000007F0: 6F 72 54 6F 6F 6C 3E 41  64 6F 62 65 20 49 6C 6C  orTool>Adobe Ill
00000800: FF FF FF FF FF FF FF FF  FF FF FF FF FF FF FF FF  ................
00000810: FF FF FF FF FF FF FF FF  FF FF FF FF FF FF FF FF  ................
00000820: FF FF FF FF FF FF FF FF  FF FF FF FF FF FF FF FF  ................
00000830: FF FF FF FF FF FF FF FF  FF FF FF FF FF FF FF FF  ................

Notice a few things:

• a simple JPEG image (at 0x330) with some kind of headers
• U-Boot commands before the JPEG - it could be useful to modify these!
• no OOB data at 0x800 - ECC is not stored - will it still boot?

By the way, to boot the device after modifying the NAND, disconnecting the Pi Pico wasn't needed - I added a command which would "deinitialize" the GPIOs to free the flash chip.

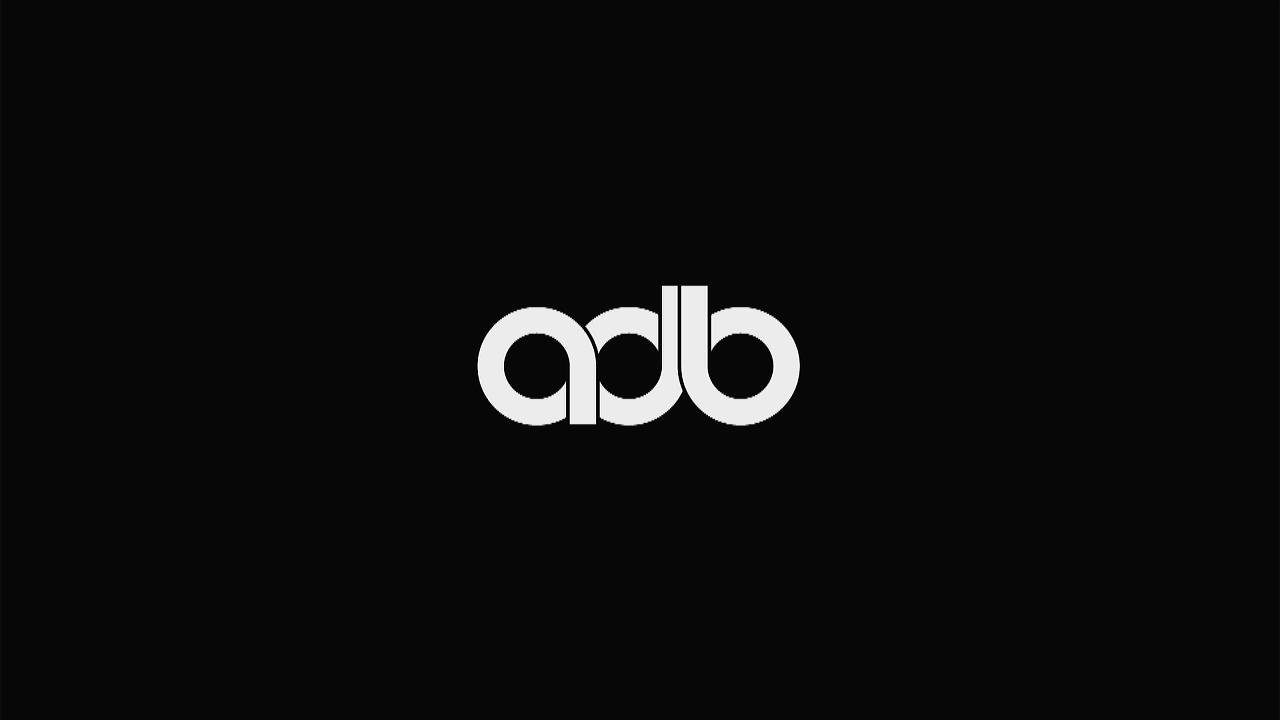

After powering on the device, it showed the splash logo - even without the ECC! That most likely meant the NAND flash controller didn't check the ECC if wasn't present (or, perhaps didn't check at all?). This was finally some good news - I could now write whatever I wanted to the NAND, without ever worrying about the ECC. (again, this later turned out not to be entirely true)

Finding out the data format

There was just one problem - the splash image had a complicated format - some odd headers, possibly CRC values and/or signatures. I needed to find out how it was encoded first.

A search of the entire NAND for ILDS - a magic string in the splash image that "stands out" - gave me nothing. Then, I searched for the splash1's offset (0x076E0000) - after all, U-Boot must know where it was located, right?

Exactly! I found a partition table in the area I named nvram. This is how it looked like:

0100BC80  -- -- -- -- -- -- -- -- 40 DB BA AD 0F 00 00 00  |--------@Ûº.....|
0100BC90  01 00 00 00 00 00 00 00 00 00 F4 00 05 E8 F6 F1  |..........ô..èöñ|
0100BCA0  E4 F7 FF FF 01 00 00 00 00 00 00 01 00 00 02 00  |ä÷ÿÿ............|
0100BCB0  06 F6 E0 F7 EC E4 E9 FF 01 00 00 00 00 00 02 01  |.öà÷ìäéÿ........|
0100BCC0  00 00 18 03 07 E9 EA E4 E1 E0 F7 95 01 00 00 00  |.....éêäáà÷.....|
0100BCD0  00 00 1A 04 00 00 18 03 07 E9 EA E4 E1 E0 F7 94  |.........éêäáà÷.|
0100BCE0  01 00 00 00 00 00 32 07 00 00 0C 00 08 E7 F1 F7  |......2......çñ÷|
0100BCF0  E3 E9 E4 E2 F6 FF FF FF 01 00 00 00 00 00 3E 07  |ãéäâöÿÿÿ......>.|
0100BD00  00 00 30 00 08 E8 E7 E7 95 C6 D0 D6 D1 FF FF FF  |..0..èçç.ÆÐÖÑÿÿÿ|
0100BD10  01 00 00 00 00 00 6E 07 00 00 42 00 07 F6 F5 E9  |......n...B..öõé|
0100BD20  E4 F6 ED 95 01 00 00 00 00 00 B0 07 00 00 42 00  |äöí.......°...B.|
0100BD30  07 F6 F5 E9 E4 F6 ED 94 01 00 00 00 00 00 F2 07  |.öõéäöí.......ò.|
0100BD40  00 00 E6 0C 06 ED E9 E6 EA E1 E0 FF 01 00 00 00  |..æ..íéæêáàÿ....|
0100BD50  00 00 D8 14 00 00 08 00 06 E1 E8 EC EB E3 EA FF  |..Ø......áèìëãêÿ|
0100BD60  01 00 00 00 00 00 E0 14 00 00 40 01 09 D6 D1 C7  |......à...@..ÖÑÇ|
0100BD70  C1 C4 D1 C4 C3 D6 FF FF 01 00 00 00 00 00 20 16  |ÁÄÑÄÃÖÿÿ...... .|
0100BD80  00 00 40 01 04 C6 C4 C3 D6 FF FF FF 01 00 00 00  |..@..ÆÄÃÖÿÿÿ....|
0100BD90  00 00 60 17 00 00 42 01 0B C6 C0 D7 D1 CC C3 CC  |..`...B..ÆÀ×ÑÌÃÌ|
0100BDA0  C6 C4 D1 C0 01 00 00 00 00 00 A2 18 00 00 04 00  |ÆÄÑÀ......¢.....|
0100BDB0  0A F5 F7 EA E1 F0 E6 F1 EC EA EB FF 01 00 00 00  |.õ÷êáðæñìêëÿ....|
0100BDC0  00 00 A6 18 00 00 1A 07 07 C3 C9 C4 D6 CD C3 D6  |..¦......ÃÉÄÖÍÃÖ|

The interesting part starts at 0x0100BC88 (with 40 DB BA AD -> ADB ADB 40) and I could easily work out how it was built. The first value (0x0F / 15) defined the number of partitions. Then, there were partition offsets, lengths, and some other bytes in the structure (yet unknown). I wrote a simple definition using DataStruct (my Python library for parsing binary formats and protocols):

@dataclass
class Partition(DataStruct):
    one: int = field("I")  # always set to 1
    offset: int = field("I")  # partition offset
    length: int = field("I")  # partition length
    param_length: int = field("B")  # length of the unknown data
    param: bytes = field(lambda ctx: ctx.param_length)  # unknown data
    _1: ... = align(4)  # alignment to 4 bytes

and got the following results:

+-------------------------+------------------------+----------------------------------+--------------+
| Bounds                  | Length                 | Param                            | Guessed name |
+-------------------------+------------------------+----------------------------------+--------------+
| 0x00000000 - 0x00F40000 | 0x00F40000 / 15.2 MiB  | e8 f6 f1 e4 f7                   | (multiple)   |
| 0x01000000 - 0x01020000 | 0x00020000 / 128 KiB   | f6 e0 f7 ec e4 e9                | nvram        |
| 0x01020000 - 0x041A0000 | 0x03180000 / 49.5 MiB  | e9 ea e4 e1 e0 f7 95             | loader1      |
| 0x041A0000 - 0x07320000 | 0x03180000 / 49.5 MiB  | e9 ea e4 e1 e0 f7 94             | loader2      |
| 0x07320000 - 0x073E0000 | 0x000C0000 / 768 KiB   | e7 f1 f7 e3 e9 e4 e2 f6          | -            |
| 0x073E0000 - 0x076E0000 | 0x00300000 / 3 MiB     | e8 e7 e7 95 c6 d0 d6 d1          | -            |
| 0x076E0000 - 0x07B00000 | 0x00420000 / 4.1 MiB   | f6 f5 e9 e4 f6 ed 95             | splash1      |
| 0x07B00000 - 0x07F20000 | 0x00420000 / 4.1 MiB   | f6 f5 e9 e4 f6 ed 94             | splash2      |
| 0x07F20000 - 0x14D80000 | 0x0CE60000 / 206.4 MiB | ed e9 e6 ea e1 e0                | download     |
| 0x14D80000 - 0x14E00000 | 0x00080000 / 512 KiB   | e1 e8 ec eb e3 ea                | -            |
| 0x14E00000 - 0x16200000 | 0x01400000 / 20 MiB    | d6 d1 c7 c1 c4 d1 c4 c3 d6       | ubi          |
| 0x16200000 - 0x17600000 | 0x01400000 / 20 MiB    | c6 c4 c3 d6                      | ubi          |
| 0x17600000 - 0x18A20000 | 0x01420000 / 20.1 MiB  | c6 c0 d7 d1 cc c3 cc c6 c4 d1 c0 | ubi          |
| 0x18A20000 - 0x18A60000 | 0x00040000 / 256 KiB   | f5 f7 ea e1 f0 e6 f1 ec ea eb    | ubi          |
| 0x18A60000 - 0x1FC00000 | 0x071A0000 / 113.6 MiB | c3 c9 c4 d6 cd c3 d6             | ubi          |
+-------------------------+------------------------+----------------------------------+--------------+

Most of the offsets matched my original partition table perfectly! I could see that the UBI partition at 0x14E00000 was actually made of 5 separate partitions. Other than this, there were not many surprises. But what about the unknown "Param"?

Well, to me it looked just like the partition's name... Different lengths, repeating patterns... Notice how the loader1/loader2 and splash1/splash2 partitions had params which differed by exactly one byte.

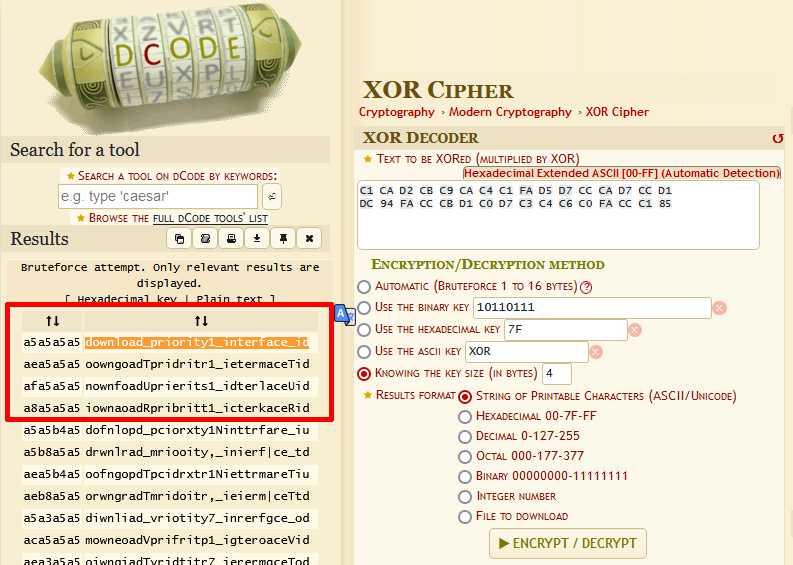

My first guess was XOR - it looked too simple for any advanced crypto algorithm. Guess what results from XOR'ing splash1 and f6 f5 e9 e4 f6 ed 95...

85 85 85 85 85 85 a4. Yes. The key was just 0x85.

A quick update of the DataStruct definition gave me this:

+-------------------------+------------------------+-------------+
| Bounds                  | Length                 | Name        |
+-------------------------+------------------------+-------------+
| 0x00000000 - 0x00F40000 | 0x00F40000 / 15.2 MiB  | mstar       |
| 0x01000000 - 0x01020000 | 0x00020000 / 128 KiB   | serial      |
| 0x01020000 - 0x041A0000 | 0x03180000 / 49.5 MiB  | loader\x10  |
| 0x041A0000 - 0x07320000 | 0x03180000 / 49.5 MiB  | loader\x11  |
| 0x07320000 - 0x073E0000 | 0x000C0000 / 768 KiB   | btrflags    |
| 0x073E0000 - 0x076E0000 | 0x00300000 / 3 MiB     | mbb\x10CUST |
| 0x076E0000 - 0x07B00000 | 0x00420000 / 4.1 MiB   | splash\x10  |
| 0x07B00000 - 0x07F20000 | 0x00420000 / 4.1 MiB   | splash\x11  |
| 0x07F20000 - 0x14D80000 | 0x0CE60000 / 206.4 MiB | hlcode      |
| 0x14D80000 - 0x14E00000 | 0x00080000 / 512 KiB   | dminfo      |
| 0x14E00000 - 0x16200000 | 0x01400000 / 20 MiB    | STBDATAFS   |
| 0x16200000 - 0x17600000 | 0x01400000 / 20 MiB    | CAFS        |
| 0x17600000 - 0x18A20000 | 0x01420000 / 20.1 MiB  | CERTIFICATE |
| 0x18A20000 - 0x18A60000 | 0x00040000 / 256 KiB   | production  |
| 0x18A60000 - 0x1FC00000 | 0x071A0000 / 113.6 MiB | FLASHFS     |
+-------------------------+------------------------+-------------+

That was a lot of weird names... Also, the last digit of loader/splash was wrong, so maybe it wasn't just 1 and 2. I updated my partition table, for simplicity I called these two loader1 and loader2 instead of the binary bytes.

Actually breaking something

So now I knew what was where - what about changing the splash image now? Sadly - no. The splash partition had a 256-byte chunk of data at the end - possibly a signature. Erasing it made the device ignore the splash image. Trying to modify/corrupt the JPEG inside also resulted in it being ignored.

I decided to erase some of the partitions. Trying optee and armfw first - even with the two partitions erased, the device booted up, restoring their contents in the meantime. This meant it had to have a copy of these two somewhere.

How about btrflags, the one with a repeating byte pattern?

λ hexdump -C 07320000_btrflags.img  | head -n 50
00000000  00 00 b0 9f 00 03 02 fe  00 ab ff 0c 00 04 01 00  |................|
00000010  00 00 00 10 00 00 01 01  00 ff ff ff ff ff ff ff  |................|
00000020  ff ff ff ff ff ff ff ff  ff ff ff ff ff ff ff ff  |................|
*
00000800  e3 7b b0 9f 00 03 02 ff  00 ab ff 0c 00 04 01 00  |.{..............|
00000810  00 00 00 10 00 00 01 01  00 ff ff ff ff ff ff ff  |................|
00000820  ff ff ff ff ff ff ff ff  ff ff ff ff ff ff ff ff  |................|
*
00001000  00 00 b0 9f 00 03 03 00  00 ab ff 0c 00 04 01 00  |................|
00001010  00 00 00 10 00 00 01 01  00 ff ff ff ff ff ff ff  |................|
00001020  ff ff ff ff ff ff ff ff  ff ff ff ff ff ff ff ff  |................|
*
00001800  e3 7b b0 9f 00 03 03 01  00 ab ff 0c 00 04 01 00  |.{..............|
00001810  00 00 00 10 00 00 01 01  00 ff ff ff ff ff ff ff  |................|
00001820  ff ff ff ff ff ff ff ff  ff ff ff ff ff ff ff ff  |................|
*
00002000  00 00 b0 9f 00 03 03 02  00 ab ff 0c 00 04 01 00  |................|
00002010  00 00 00 10 00 00 01 01  00 ff ff ff ff ff ff ff  |................|
00002020  ff ff ff ff ff ff ff ff  ff ff ff ff ff ff ff ff  |................|
*

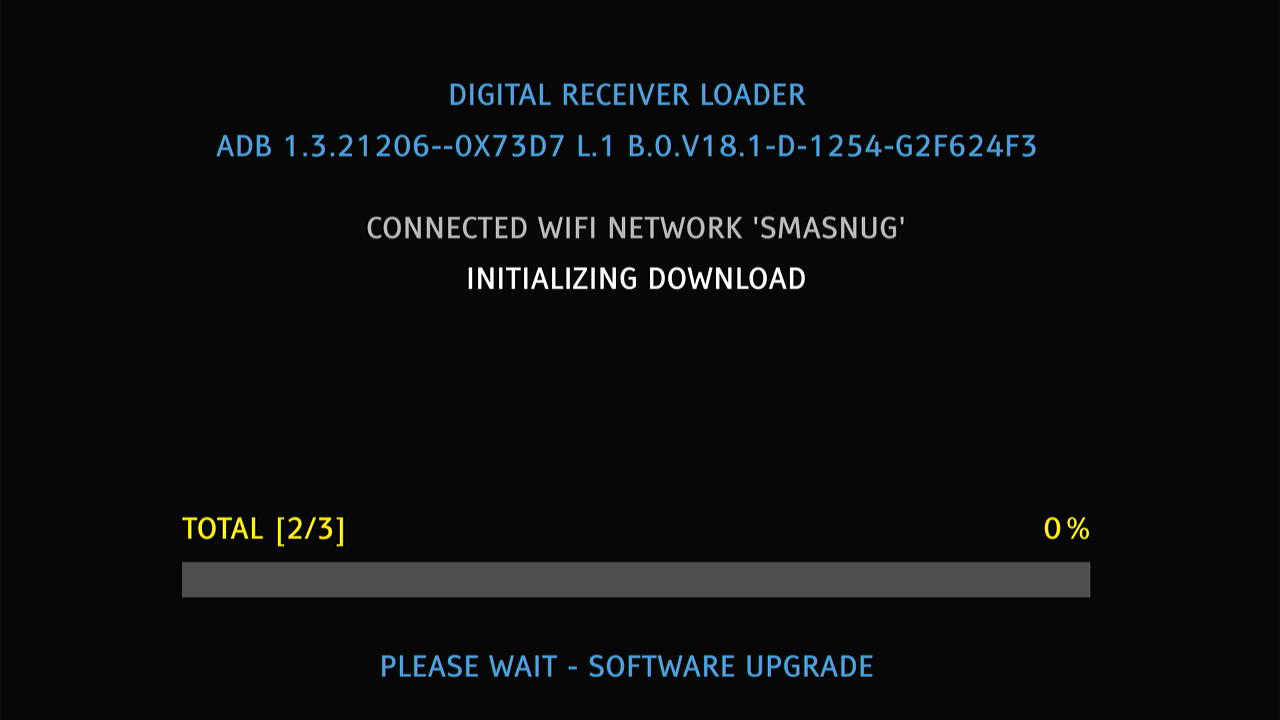

Device booting up in loader mode

Right! Erasing it caused the device to enter the "loader" - a graphical firmware upgrade interface. It then connected to my Wi-Fi to download a firmware upgrade - at the time, my device was running an older firmware version, which resulted in an upgrade prompt at every startup.

Upgrading the firmware

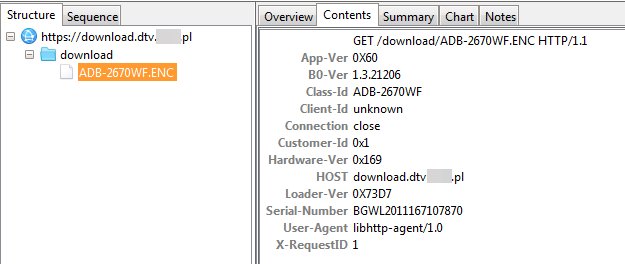

But how did the loader know what file to download?

To check that, I booted it up normally and accepted the FW upgrade prompt. Right after pressing OK, I dumped the NAND chip again - before the loader got a chance to download the firmware.

After comparing the firmware dump - before and after accepting the upgrade - mostly two things were different:

• the stbdatafs partition, there was a file called loader.props.v1 in the UBIFS;
• the btrflags - possibly what told the loader to enter upgrade mode.

The loader.props.v1 looked like this:

00000000  C1 CA D2 CB C9 CA C4 C1 FA D5 D7 CC CA D7 CC D1  |ÁÊÒËÉÊÄÁúÕ×ÌÊ×ÌÑ|
00000010  DC 94 FA CC CB D1 C0 D7 C3 C4 C6 C0 FA CC C1 85  |Ü.úÌËÑÀ×ÃÄÆÀúÌÁ.|
00000020  98 90 AF C1 CA D2 CB C9 CA C4 C1 FA D5 D7 CC CA  |..¯ÁÊÒËÉÊÄÁúÕ×ÌÊ|
00000030  D7 CC D1 DC 94 FA D5 D7 CA D1 CA C6 CA C9 FA CC  |×ÌÑÜ.úÕ×ÊÑÊÆÊÉúÌ|
00000040  C1 85 98 95 AF C1 CA D2 CB C9 CA C4 C1 FA D5 D7  |Á...¯ÁÊÒËÉÊÄÁúÕ×|
00000050  CC CA D7 CC D1 DC 94 FA D6 C9 CA D1 FA CC C1 85  |ÌÊ×ÌÑÜ.úÖÉÊÑúÌÁ.|
00000060  98 95 AF C1 CA D2 CB C9 CA C4 C1 FA D5 D7 CC CA  |..¯ÁÊÒËÉÊÄÁúÕ×ÌÊ|
00000070  D7 CC D1 DC 97 FA CC CB D1 C0 D7 C3 C4 C6 C0 FA  |×ÌÑÜ.úÌËÑÀ×ÃÄÆÀú|
00000080  CC C1 85 98 91 AF C1 CA D2 CB C9 CA C4 C1 FA D5  |ÌÁ...¯ÁÊÒËÉÊÄÁúÕ|
00000090  D7 CC CA D7 CC D1 DC 97 FA D5 D7 CA D1 CA C6 CA  |×ÌÊ×ÌÑÜ.úÕ×ÊÑÊÆÊ|
000000A0  C9 FA CC C1 85 98 93 AF C1 CA D2 CB C9 CA C4 C1  |ÉúÌÁ...¯ÁÊÒËÉÊÄÁ|
000000B0  FA D5 D7 CC CA D7 CC D1 DC 97 FA D6 C9 CA D1 FA  |úÕ×ÌÊ×ÌÑÜ.úÖÉÊÑú|
000000C0  CC C1 85 98 95 AF C1 CA D2 CB C9 CA C4 C1 FA D5  |ÌÁ...¯ÁÊÒËÉÊÄÁúÕ|
000000D0  D7 CC CA D7 CC D1 DC 96 FA CC CB D1 C0 D7 C3 C4  |×ÌÊ×ÌÑÜ.úÌËÑÀ×ÃÄ|
000000E0  C6 C0 FA CC C1 85 98 9C AF C1 CA D2 CB C9 CA C4  |ÆÀúÌÁ...¯ÁÊÒËÉÊÄ|
000000F0  C1 FA D5 D7 CC CA D7 CC D1 DC 96 FA D5 D7 CA D1  |ÁúÕ×ÌÊ×ÌÑÜ.úÕ×ÊÑ|
00000100  CA C6 CA C9 FA CC C1 85 98 93 AF C1 CA D2 CB C9  |ÊÆÊÉúÌÁ...¯ÁÊÒËÉ|
00000110  CA C4 C1 FA D5 D7 CC CA D7 CC D1 DC 96 FA D6 C9  |ÊÄÁúÕ×ÌÊ×ÌÑÜ.úÖÉ|
00000120  CA D1 FA CC C1 85 98 95 AF C1 CA D2 CB C9 CA C4  |ÊÑúÌÁ...¯ÁÊÒËÉÊÄ|
00000130  C1 FA D5 D7 CC CA D7 CC D1 DC FA C6 CA D0 CB D1  |ÁúÕ×ÌÊ×ÌÑÜúÆÊÐËÑ|
00000140  85 98 96 AF C1 CA D2 CB C9 CA C4 C1 FA D5 D7 CC  |...¯ÁÊÒËÉÊÄÁúÕ×Ì|
00000150  CA D7 CC D1 DC FA CA D7 C1 C0 D7 85 98 96 89 97  |Ê×ÌÑÜúÊ×ÁÀ×.....|
00000160  89 94 AF CC CB D1 C0 D7 C3 C4 C6 C0 FA C0 D1 CD  |..¯ÌËÑÀ×ÃÄÆÀúÀÑÍ|
00000170  C0 D7 CB C0 D1 95 FA C1 CB D6 FA 94 FA CC D5 FA  |À×ËÀÑ.úÁËÖú.úÌÕú|
00000180  C4 C1 C1 D7 C0 D6 D6 85 98 AF CC CB D1 C0 D7 C3  |ÄÁÁ×ÀÖÖ..¯ÌËÑÀ×Ã|
00000190  C4 C6 C0 FA C0 D1 CD C0 D7 CB C0 D1 95 FA C1 CB  |ÄÆÀúÀÑÍÀ×ËÀÑ.úÁË|
[...]

Hmm, odd patterns and all characters from a similar binary range? No, it can't be...

A quick XOR brute force revealed a key of 0xA5.

XOR brute force on dcode.fr

00000000  64 6F 77 6E 6C 6F 61 64 5F 70 72 69 6F 72 69 74  |download_priorit|
00000010  79 31 5F 69 6E 74 65 72 66 61 63 65 5F 69 64 20  |y1_interface_id |
00000020  3D 35 0A 64 6F 77 6E 6C 6F 61 64 5F 70 72 69 6F  |=5.download_prio|
00000030  72 69 74 79 31 5F 70 72 6F 74 6F 63 6F 6C 5F 69  |rity1_protocol_i|
00000040  64 20 3D 30 0A 64 6F 77 6E 6C 6F 61 64 5F 70 72  |d =0.download_pr|
00000050  69 6F 72 69 74 79 31 5F 73 6C 6F 74 5F 69 64 20  |iority1_slot_id |
00000060  3D 30 0A 64 6F 77 6E 6C 6F 61 64 5F 70 72 69 6F  |=0.download_prio|
00000070  72 69 74 79 32 5F 69 6E 74 65 72 66 61 63 65 5F  |rity2_interface_|
00000080  69 64 20 3D 34 0A 64 6F 77 6E 6C 6F 61 64 5F 70  |id =4.download_p|
00000090  72 69 6F 72 69 74 79 32 5F 70 72 6F 74 6F 63 6F  |riority2_protoco|
000000A0  6C 5F 69 64 20 3D 36 0A 64 6F 77 6E 6C 6F 61 64  |l_id =6.download|
000000B0  5F 70 72 69 6F 72 69 74 79 32 5F 73 6C 6F 74 5F  |_priority2_slot_|
000000C0  69 64 20 3D 30 0A 64 6F 77 6E 6C 6F 61 64 5F 70  |id =0.download_p|
000000D0  72 69 6F 72 69 74 79 33 5F 69 6E 74 65 72 66 61  |riority3_interfa|
000000E0  63 65 5F 69 64 20 3D 39 0A 64 6F 77 6E 6C 6F 61  |ce_id =9.downloa|
000000F0  64 5F 70 72 69 6F 72 69 74 79 33 5F 70 72 6F 74  |d_priority3_prot|
00000100  6F 63 6F 6C 5F 69 64 20 3D 36 0A 64 6F 77 6E 6C  |ocol_id =6.downl|
00000110  6F 61 64 5F 70 72 69 6F 72 69 74 79 33 5F 73 6C  |oad_priority3_sl|
00000120  6F 74 5F 69 64 20 3D 30 0A 64 6F 77 6E 6C 6F 61  |ot_id =0.downloa|
00000130  64 5F 70 72 69 6F 72 69 74 79 5F 63 6F 75 6E 74  |d_priority_count|
00000140  20 3D 33 0A 64 6F 77 6E 6C 6F 61 64 5F 70 72 69  | =3.download_pri|
00000150  6F 72 69 74 79 5F 6F 72 64 65 72 20 3D 33 2C 32  |ority_order =3,2|
00000160  2C 31 0A 69 6E 74 65 72 66 61 63 65 5F 65 74 68  |,1.interface_eth|
00000170  65 72 6E 65 74 30 5F 64 6E 73 5F 31 5F 69 70 5F  |ernet0_dns_1_ip_|
00000180  61 64 64 72 65 73 73 20 3D 0A 69 6E 74 65 72 66  |address =.interf|
00000190  61 63 65 5F 65 74 68 65 72 6E 65 74 30 5F 64 6E  |ace_ethernet0_dn|

Right! That made me realize - the partition table's key was also 0xA5, not 0x85. The mistake made the names lowercase and messed up the splash\x01 names. Here's the correct partition table:

+-------------------------+------------------------+-------------+
| Bounds                  | Length                 | Name        |
+-------------------------+------------------------+-------------+
| 0x00000000 - 0x00F40000 | 0x00F40000 / 15.2 MiB  | MSTAR       |
| 0x01000000 - 0x01020000 | 0x00020000 / 128 KiB   | SERIAL      |
| 0x01020000 - 0x041A0000 | 0x03180000 / 49.5 MiB  | LOADER0     |
| 0x041A0000 - 0x07320000 | 0x03180000 / 49.5 MiB  | LOADER1     |
| 0x07320000 - 0x073E0000 | 0x000C0000 / 768 KiB   | BTRFLAGS    |
| 0x073E0000 - 0x076E0000 | 0x00300000 / 3 MiB     | MBB0cust    |
| 0x076E0000 - 0x07B00000 | 0x00420000 / 4.1 MiB   | SPLASH0     |
| 0x07B00000 - 0x07F20000 | 0x00420000 / 4.1 MiB   | SPLASH1     |
| 0x07F20000 - 0x14D80000 | 0x0CE60000 / 206.4 MiB | HLCODE      |
| 0x14D80000 - 0x14E00000 | 0x00080000 / 512 KiB   | DMINFO      |
| 0x14E00000 - 0x16200000 | 0x01400000 / 20 MiB    | stbdatafs   |
| 0x16200000 - 0x17600000 | 0x01400000 / 20 MiB    | cafs        |
| 0x17600000 - 0x18A20000 | 0x01420000 / 20.1 MiB  | certificate |
| 0x18A20000 - 0x18A60000 | 0x00040000 / 256 KiB   | PRODUCTION  |
| 0x18A60000 - 0x1FC00000 | 0x071A0000 / 113.6 MiB | flashfs     |
+-------------------------+------------------------+-------------+

Much better. Back to the loader.props.v1 - it contained the Wi-Fi SSID/password, IP configuration and the firmware download URL - the same one that I was able to extract from UBIFS a year ago.

With the device ready to upgrade the firmware, there was one more thing - I wanted to sniff/capture the network traffic of the STB, just for fun. Who knows, maybe there would be some unencrypted traffic (aside from the go.microsoft.com "secure" clock sync).

Capturing the network traffic

For this, I used a work-in-progress rewrite of Tuya Cloudcutter - a Python module that could create a Wi-Fi access point, start a DHCP & DNS server, spoof DNS requests and run an HTTP(S) server. Since most of the STB's traffic ran over HTTPS, I needed to redirect it to the destination server.

I ended up adding another module - a simple TCP proxy. It could transparently proxy any HTTP/HTTPS traffic (without altering/decrypting it) to any external (or local) IP address. It extracted the destination hostname from the TLS handshake packet. I could also attach an external HTTPS proxy (which I did). It wouldn't let me see HTTPS decrypted traffic, but at least it would nicely show which hostnames were contacted.

Having everything set up - the AP running, Wireshark sniffing, Charles Proxy recording - I started the firmware upgrade.

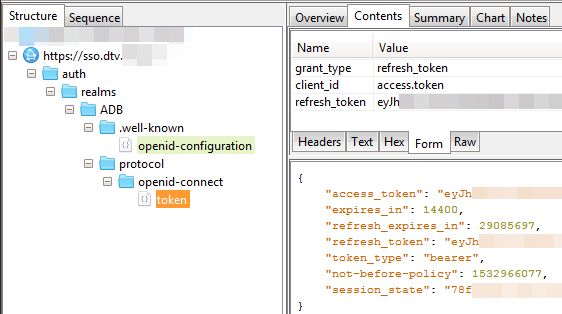

A capture from Charles Proxy

Erm, okay, why did I see the full request path in Charles? Oh, right, I forgot to disable SSL proxying...

Wait, what? The loader doesn't verify SSL certificates? Uhh, okay, sure...

Yeah, as it turned out, the loader didn't care about SSL certificate validity - it could even be self signed. There's more - the STB's GUI also didn't validate certificates in some cases - namely, to the video-lb domain and the sso domain (yes, the one used for authentication).

This let me sniff (and modify!) the Bearer access tokens used to authenticate to the API. As a result, I could authenticate the old, unauthorized device using my actual (ISP-owned) STB's token (I still had two of them, remember?). It indeed let me watch TV on both of the devices - cool, but not very useful.

Authentication without verifying SSL certificates

The firmware upgrade succeeded, but I didn't notice any changes in the UI.

U-Boot environment

At this point I started wondering again - how the heck did the STB run the loader? Was that started by optee? How was the optee started, then? It was encrypted, so what decrypted it? How was it encrypted? What boot stages were even there?

I wanted to find out if I could mess with U-Boot's environment to make it do something else. Here's the entire stored environment:

51OnRam=0
E_LX_MEM2_ADR=0x25200000
E_LX_MEM2_LEN=0x10100000
E_LX_MEM3_ADR=0x44E00000
E_LX_MEM3_LEN=0x3B100000
E_LX_MEM_ADR=0x00200000
E_LX_MEM_LEN=0x0C800000
E_MMAP_ID_HW_AES_BUF_ADR=0x3B700000
E_MMAP_ID_HW_AES_BUF_LEN=0x000C0000
E_MMAP_ID_XC1_MAIN_FB_ADR=0x24108400
E_MMAP_ID_XC1_MAIN_FB_LEN=0x008F7000
GOP_SET_MUX=0:3:0:2
MIU0_GROUP_PRIORITY=1:0:2:3
MIU0_GROUP_SELMIU=0000:0000:0000:0000:0000:0000
MIU1_GROUP_PRIORITY=1:0:2:3
MIU1_GROUP_SELMIU=7200:6678:0000:00A8:3000:C3CF
MS_MEM=LX_MEM=0x0C800000 EMAC_MEM=0x00100000 DRAM_LEN=0x80000000 LX_MEM2=0x45200000,0x10100000 LX_MEM3=0x64E00000,0x3B100000 coherent_pool=1536K
MstarUpgrade_complete=0
UARTOnOff=on
baudrate=115200
bl_dfb_framebuffer_addr=0x19236000
bl_jpd_inter_addr=0x16EC6000
bl_jpd_inter_size=0x00630000
bl_jpd_read_addr=0x16E76000
bl_jpd_read_size=0x00050000
bl_jpd_write_addr=0x174F6000
bl_jpd_write_size=0x003FC000
bootargs=console=ttyS0,115200 LX_MEM=0x0C800000 EMAC_MEM=0x00100000 DRAM_LEN=0x80000000 LX_MEM2=0x45200000,0x10100000 LX_MEM3=0x64E00000,0x3B100000 coherent_pool=1536K mtdparts=edb64M-nand:2432k@1792k(MBOOT),2560k(MBOOTBAK),1664k(UBILD),6144k(OPTEE),1024k(ARMFW) CORE_DUMP_PATH=/application/core_dump.%%p.%E.gz cma=0xAC00000 CMA0=ion_vdec_heap,miu=0,hid=19,sz=0x7c00000 CMA1=ion_vdec_mfe,miu=0,hid=20,sz=0x3000000 FLASH_TYPE=NAND SDIO_CONFIG=1 tee_mode=optee MW_FLOW=enable
bootcmd=ubi part UBI;ubi read 0x20300000 KL 0x9000000; bootm 0x20300000;
bootdelay=1
bootlogo_gopidx=3
bootscript=echo Running bootscript from mmc${mmcdev} ...; source ${loadaddr}
burnmode_poweron=false
colorformat=2
console=ttyS2,115200n8
dc_poweroff=0
factory_poweron_mode=direct
info_exchange=ubifile
loadaddr=0x82000000
loadbootscript=fatload mmc ${mmcdev} ${loadaddr} boot.scr
loaduimage=fatload mmc ${mmcdev} ${loadaddr} uImage
macaddr=C4:77:AF:XX:XX:XX
mmcargs=setenv bootargs console=${console} vram=${vram} root=${mmcroot} rootfstype=${mmcrootfstype}
mmcboot=echo Booting from mmc${mmcdev} ...; run mmcargs; bootm ${loadaddr}
mmcdev=0
mmcroot=/dev/mmcblk0p2 rw
mmcrootfstype=ext3 rootwait
mtddevname=MBOOT
mtddevnum=0
mtdids=nand0=edb64M-nand
mtdparts=mtdparts=edb64M-nand:2432k@1792k(MBOOT),2560k(MBOOTBAK),1664k(UBILD),6144k(OPTEE),1024k(ARMFW)
osd_language=English
partition=nand0,0
resolution=8
stderr=serial
stdin=serial
stdout=serial
ubispeedup=UBI
upgrade_mode=null
usbtty=cdc_acm
ve_buffer_addr=0x24108000
ve_buffer_size=0x00000400
verify=y
vram=16M

It's worth noting that some vars (like MS_MEM or bootargs) have changed during the FW upgrade process but eventually were set back to their original values.

Also, this environment was always recreated, even after wiping the ubild partition, which meant that every value seen here had to be written somewhere else. Yet, I was unable to find some of them, e.g. CORE_DUMP_PATH.

Then I found myself diving into the U-Boot source code and disassembly (again) - to find something, that would hopefully let me run U-Boot commands after modyfing the environment. It wasn't as simple as changing bootcmd - this one was not even used during the boot process.

And I found something - it seemed like the custar command could be used to read an MstarUpgrade.bin file from USB. It contained U-Boot commands to execute, but the file wasn't encrypted or signed - was it the perfect candidate?

Okay, not exactly... custar was only called if the environment variable upgrade_mode was set to usb. Unfortunately, no matter what I tried, I couldn't get my modifed UBI environment to actually persist on the NAND. The bootloader would always overwrite it with the defaults and ignore what was on the NAND. Why use environment at all, if it's always ignored anyway...?

Erasing even more

Since I couldn't really make progress with U-Boot, I wanted to try erasing everything that I could (mostly for fun). Here's what I found out:

Oddly - the device could still boot with all of optee, armfw, loader1 and loader2 erased (it would restore the first two from somewhere, presumably hlcode). When hlcode was also cleared, it entered a quick bootloop; no splash image was then observed.

() The serial partition with everything erased, except for the partition table, would allow the device to boot. It would, however, show an *HDCP error message**.

Understanding the loader image format

Lastly, I wanted to take a closer look at the loader/hlcode images (their structure looked nearly identical). In 2023, I only managed to write a barely-working extractor, but couldn't understand the full structure. As it later turned out, the splash image also had a similar format, at least in its first layer.

While writing a DataStruct class (which, again, made the task a lot easier), I could easily guess some integer fields (such as lengths, offsets, addresses or image types), but there were still many unknown values.

I noticed that the binaries were split into sub-images. Here is the loader image with unknown fields stripped out, for brevity:

AdbFirmwareImage(version=29655,
                 type=3,
                 text='adb2670wf [00000169.00000001] loader image',
                 size1=39874672,
                 size2=39874416,
                 size3=39874412,
                 magic1=b'\xad\xba\xdb ',
                 magic2=b'BOOT',
                 data=AdbFirmwareBoot(size1=39874360,
                                      param_size=56,
                                      param_data=...,
                                      image_count=9,
                                      images=[Image(offset=372,
                                                    type=2,
                                                    size1=232,
                                                    size2=232),
                                              Image(offset=628,
                                                    type=2,
                                                    size1=188,
                                                    size2=188),
                                              Image(offset=840,
                                                    type=2,
                                                    size1=981280,
                                                    size2=981280),
                                              Image(offset=982144,
                                                    type=2,
                                                    size1=38051364,
                                                    size2=38051364),
                                              Image(offset=39033532,
                                                    type=2,
                                                    size1=57004,
                                                    size2=57004),
                                              Image(offset=39090560,
                                                    type=2,
                                                    size1=1644,
                                                    size2=1644),
                                              Image(offset=39092228,
                                                    type=2,
                                                    size1=3824,
                                                    size2=3824),
                                              Image(offset=39096076,
                                                    type=6,
                                                    size1=252,
                                                    size2=227),
                                              Image(offset=39096328,
                                                    type=6,
                                                    size1=2264052,
                                                    size2=778298)],
                                      magic2=b'.END'))

After decoding all three binaries, I got the following info:

+------------+--------------+
| Image      | Size         |
+------------+--------------+
| **LOADER** |              |
| 1          | 232 B        |
| 2          | 188 B        |
| 3          | 981,280 B    |
| 4          | 38,051,364 B |
| 5          | 57,004 B     |
| 6          | 1,644 B      |
| 7          | 3,824 B      |
| 8          | 227 B        |
| 9          | 778,298 B    |
| **HLCODE** |              |
| 1          | 232 B        |
| 2          | 90,206,204 B |
| 3          | 252 B        |
| 4          | 2,263,996 B  |
| **SPLASH** |              |
| 1          | 486 B        |
| 2          | 71,146 B     |
+------------+--------------+

I could notice some small sub-images (perhaps text parameters, such as U-Boot commands or bootargs?), as well as larger parts (38 MiB or 90 MiB - perhaps the ramdisk?). The 2 MiB partition looked interesting as well, as it could potentially contain optee or armfw backup images.

Oh, and by the way, here's the entropy of loader and hlcode...

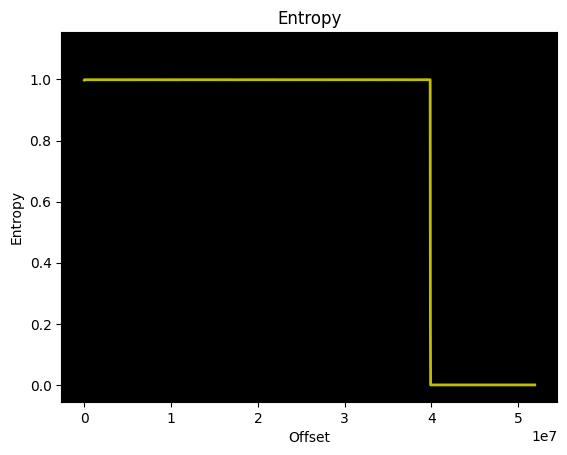

loader entropy

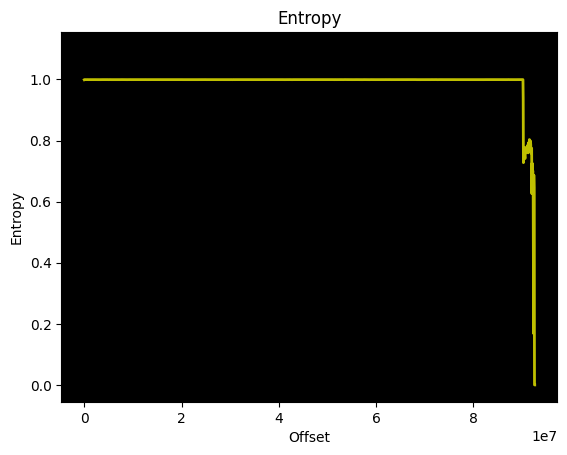

hlcode entropy

Yeah, it was all encrypted. Even if I could guess which sub-image had what kind of data, it would be pointless without knowing the encryption scheme being used.

The sharp drop (at the end of the 1st picture) was just where the actual data ended (where it became all 0xFF). The hlcode, however, had some actual non-encrypted data by the end - a full copy of mboot.

This did not look good.

To be continued

As I've mostly ran out of ideas by now, I will probably be focusing on some other things for the time being.

Also, I don't want to keep these posts too long, so I will probably get back to this topic in a few months.

Come back for part 4 :)
